As human activities in marine environments increase, so does the need for innovative solutions to mitigate their impact on underwater ecosystems. The bubble curtain system is one of the most effective technologies in noise attenuation. These systems have become a cornerstone of sustainable marine operations, significantly reducing the noise generated during pile driving, dredging, and seismic surveys.

This article delves into the science behind bubble curtains, their applications, and their role in protecting marine life.

Understanding Bubble Curtains

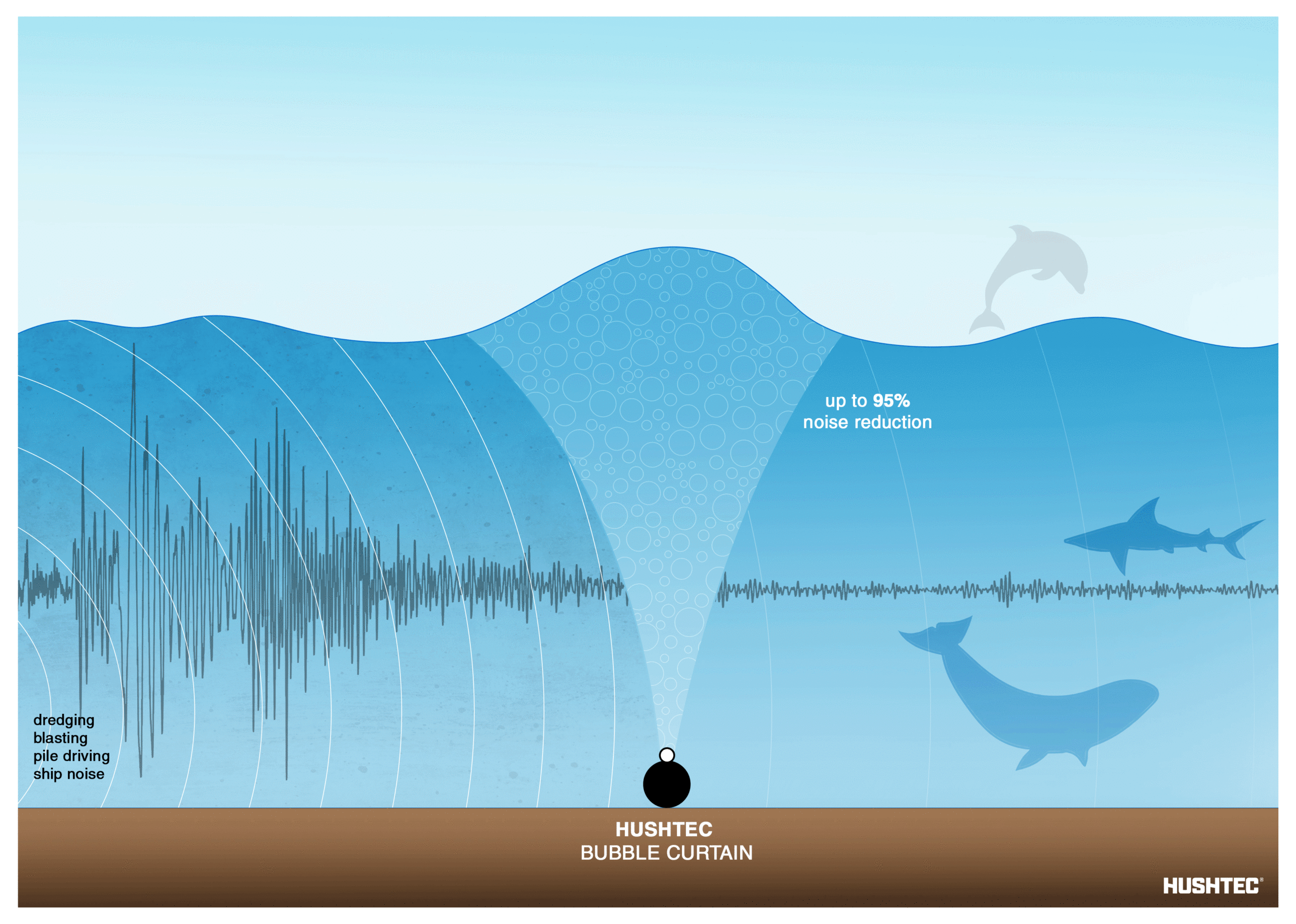

A bubble curtain is a device that releases air into the water to form a continuous “curtain” of bubbles. This bubble barrier is an acoustic shield, absorbing, scattering, and reflecting underwater sound waves. The system typically consists of a perforated hose or ring connected to an air compressor. When air is pumped through the hose, it rises to the surface in the form of bubbles, creating a dense, vertical wall.

How Bubble Curtains Attenuate Noise

The effectiveness of a bubble curtain in noise reduction relies on several physical principles:

1. Reflection and Scattering

The bubble curtain acts as a barrier, scattering and reflecting sound waves away from sensitive areas. This is especially effective in high-frequency noise attenuation, which is more easily deflected than low-frequency noise.

2. Absorption

Bubbles within the curtain absorb a portion of the sound energy. As sound waves encounter the air-water interface of the bubbles, some energy is lost due to the impedance mismatch between air (low density) and water (high density).

3. Destructive Interference

The interaction of sound waves with the bubble curtain can create destructive interference patterns, further reducing the transmission of noise.

Applications of Bubble Curtains

Bubble curtains are widely used across various marine industries to minimize noise impacts:

1. Offshore Wind Farm Construction

During pile driving, which generates intense, low-frequency noise, bubble curtains are deployed to protect marine mammals and fish from harmful sound levels.

2. Dredging Operations

Dredging can produce continuous noise that affects local marine ecosystems. Bubble curtains help contain this noise, reducing its propagation through the water column.

3. Seismic Surveys

Oil and gas exploration often involves seismic airgun blasts, which can disturb marine life. Bubble curtains act as an acoustic barrier, reducing the intensity of sound waves traveling through the water.

4. Ship Noise Mitigation

In some cases, bubble curtains are used near ports and harbors to reduce noise pollution caused by large vessels.

Benefits of Bubble Curtains

1. Environmental Protection

Bubble curtains help protect marine mammals, fish, and other aquatic organisms from harmful noise levels that can cause stress, disorientation, or injury.

2. Regulatory Compliance

Many countries require noise mitigation measures as part of environmental impact assessments for marine projects. Bubble curtains provide a reliable and proven method for meeting these requirements.

3. Flexibility and Adaptability

Bubble curtains can be customized to suit various project needs, from small-scale operations to large offshore installations.

4. Cost-Effectiveness

Compared to other noise mitigation measures, bubble curtains are relatively affordable and easy to deploy.

Challenges and Innovations

While bubble curtains are highly effective, their performance can be influenced by factors like water depth, current speed, and the frequency of the noise. To address these challenges, advancements in bubble curtain technology include:

• Double and Triple Bubble Curtains: Deploying multiple layers of bubbles enhances noise attenuation.
• Optimized Bubble Density: Research into bubble size and density helps maximize sound energy absorption.
• Integrated Monitoring Systems: Real-time acoustic monitoring ensures that the bubble curtain is functioning effectively.

The Role of Bubble Curtains in Marine Conservation

Bubble curtains have proven to be a vital tool in reducing the ecological footprint of marine operations. By minimizing the impact of noise pollution, these systems play a crucial role in conserving marine biodiversity, ensuring the health and survival of species that rely on sound for communication and navigation.

Key Takeaways

Bubble curtains are a game-changing technology for noise attenuation in marine environments. Combining simplicity with effectiveness, they provide industries with a sustainable solution to mitigate the impacts of underwater noise pollution. As marine activities continue to expand, innovations like bubble curtains will be essential for balancing industrial progress with environmental responsibility.

For projects requiring advanced noise mitigation, solutions like Hushtec Solutions’ Bubble Curtain System demonstrate how cutting-edge technology can align with global efforts to protect our oceans.
