Large-scale construction projects are notorious for generating high levels of noise due to activities such as pile driving, heavy equipment operation, and demolition work. Uncontrolled noise pollution can negatively impact nearby communities, lead to regulatory issues, and compromise worker safety. Hushtec, an industry leader in noise control solutions, has developed innovative methods for noise mitigation that are both customizable and effective. This case study highlights how Hushtec’s noise management technologies—including EchoShield Temporary Noise Walls, Premium Noise Barriers, Acoustic Tents, and Shrouds for Pile Driving and Heavy Equipment—were deployed in large construction projects to reduce noise levels, enhance safety, and ensure compliance with environmental standards.
Client and Project Overview: Urban High-Rise Construction Project
A major construction firm embarked on developing a multi-story commercial and residential high-rise in a densely populated urban area. With surrounding businesses, residential properties, and schools nearby, noise control was critical to prevent disruptions, complaints, and potential regulatory fines. Key activities generating noise included pile driving, crane operations, heavy machinery, and structural steelwork, each requiring a strategic noise reduction plan.
Challenge
The project faced several key challenges related to noise management:
- High-Intensity Noise Sources: Activities such as pile driving, excavation, and steel assembly were generating noise levels that exceeded permissible limits in urban environments.
- Proximity to Sensitive Areas: Schools, hospitals, and residential buildings located near the construction site heightened the importance of keeping noise emissions within allowable limits.
- Regulatory Compliance: The construction project had to adhere to strict local regulations, especially regarding acceptable noise levels during early morning and late evening hours.
- Worker Health and Safety: Extended exposure to high noise levels posed risks to workers’ hearing and overall well-being, potentially affecting both morale and productivity.
Hushtec Solution
To address the client’s challenges, Hushtec developed a comprehensive, tailored noise management strategy that included EchoShield Temporary Noise Walls, Premium Noise Barriers, Acoustic Tents, and customized Shrouds for Pile Driving and Heavy Equipment.
1. EchoShield Temporary Noise Walls

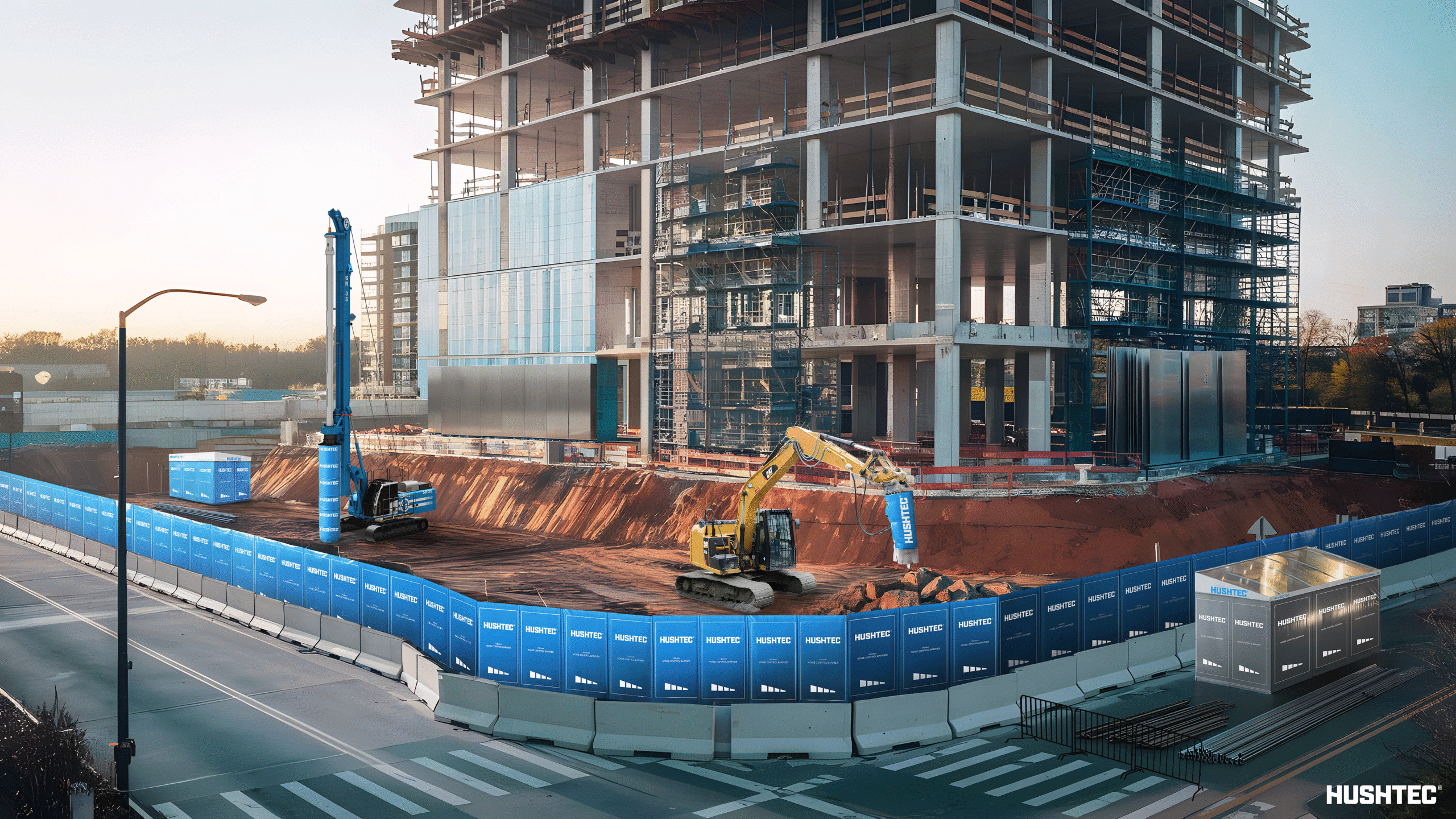

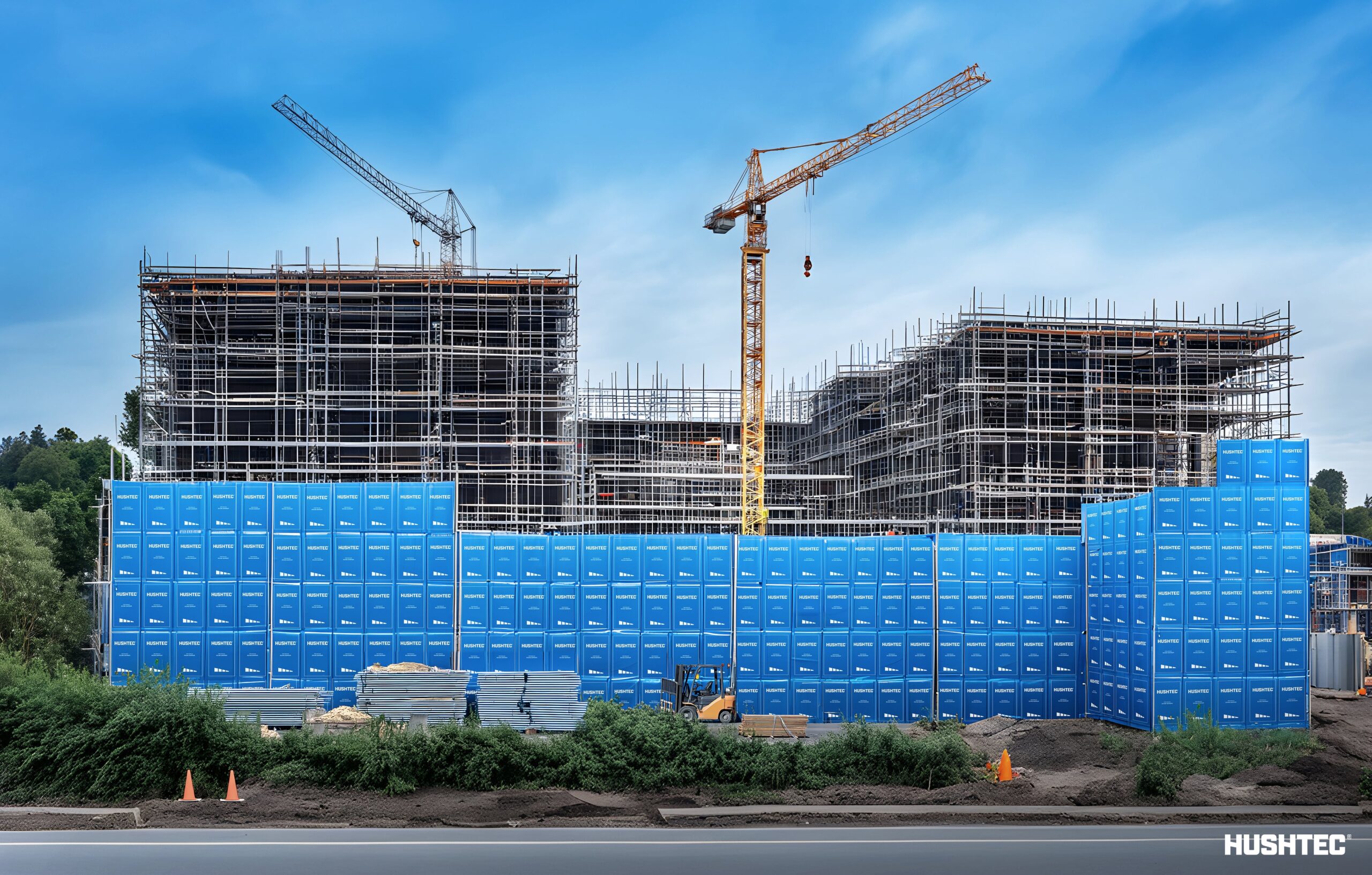

Hushtec’s EchoShield Temporary Noise Walls were the cornerstone of the noise management strategy, providing a flexible and highly effective solution for controlling noise across the construction site.
- Rapid Deployment: The EchoShield system was designed for quick installation and easy reconfiguration, allowing the construction team to adapt to changing noise control needs as the project progressed.
- Customizable Height: The walls could be stacked to reach heights of up to 24 feet, effectively containing noise from even the tallest equipment on site.
- Superior Noise Reduction: Engineered with advanced acoustic materials, the EchoShield walls provided up to 32 dB of noise reduction, significantly mitigating the impact on surrounding areas.
- Durability: Built to withstand harsh construction environments, the EchoShield walls maintained their performance throughout the project’s duration.
There are several reasons why certain site areas might require EchoShield Temporary Noise Walls instead of Premium Noise Barriers:
- Flexibility and Mobility:
- EchoShield walls are designed for rapid deployment and easy reconfiguration. In areas where the noise source frequently changes or where access needs vary, EchoShield walls can be quickly moved or adjusted.
- Premium Noise Barriers are typically more permanent installations, making them less suitable for dynamic construction environments.
- Height Requirements:
- EchoShield walls can be stacked to reach heights of up to 24 feet. This makes them ideal for containing noise from tall equipment or in areas where the noise source is elevated.
- Premium Noise Barriers may have limitations on maximum height, making them less effective for very tall noise sources.
- Space Constraints:
- EchoShield walls have a smaller footprint and can be installed closer to noise sources, making them ideal for tight or congested areas of the construction site.
- Premium Noise Barriers might require more space for installation and support structures.
- Versatility in Noise Reduction:
- EchoShield walls are engineered to provide up to 32 dB of noise reduction, which is sufficient for most construction activities.
- While Premium Noise Barriers can offer excellent noise reduction, they might be overkill for areas that don’t require such intensive sound blocking.
- Specific Noise Frequencies:
- EchoShield walls might be more effective at dealing with certain frequencies of noise common in construction, such as those produced by heavy machinery or power tools.
- Premium Noise Barriers could be better suited for consistent, low-frequency noise that requires more mass for effective blocking.
In practice, many construction sites use a combination of both EchoShield walls and Premium Noise Barriers, strategically placing each type where its strengths are most beneficial. The choice between the two often depends on the specific noise challenges, site layout, project duration, and local regulations of each unique construction project.
2. Premium Noise Barriers
In addition to the EchoShield system, Hushtec implemented Premium Noise Barriers around specific high-noise areas of the site.
- Customization: The barriers were tailored to the site layout, complementing the EchoShield walls in areas requiring additional noise control.
- Material: Constructed with high-density sound-absorbing materials, these barriers provided an extra layer of noise mitigation for particularly sensitive areas.
- Results: The combination of EchoShield walls and Premium Noise Barriers reduced noise emissions by up to 35 dB(A) in critical areas.
3. Acoustic Tents for Cranes and Heavy Machinery

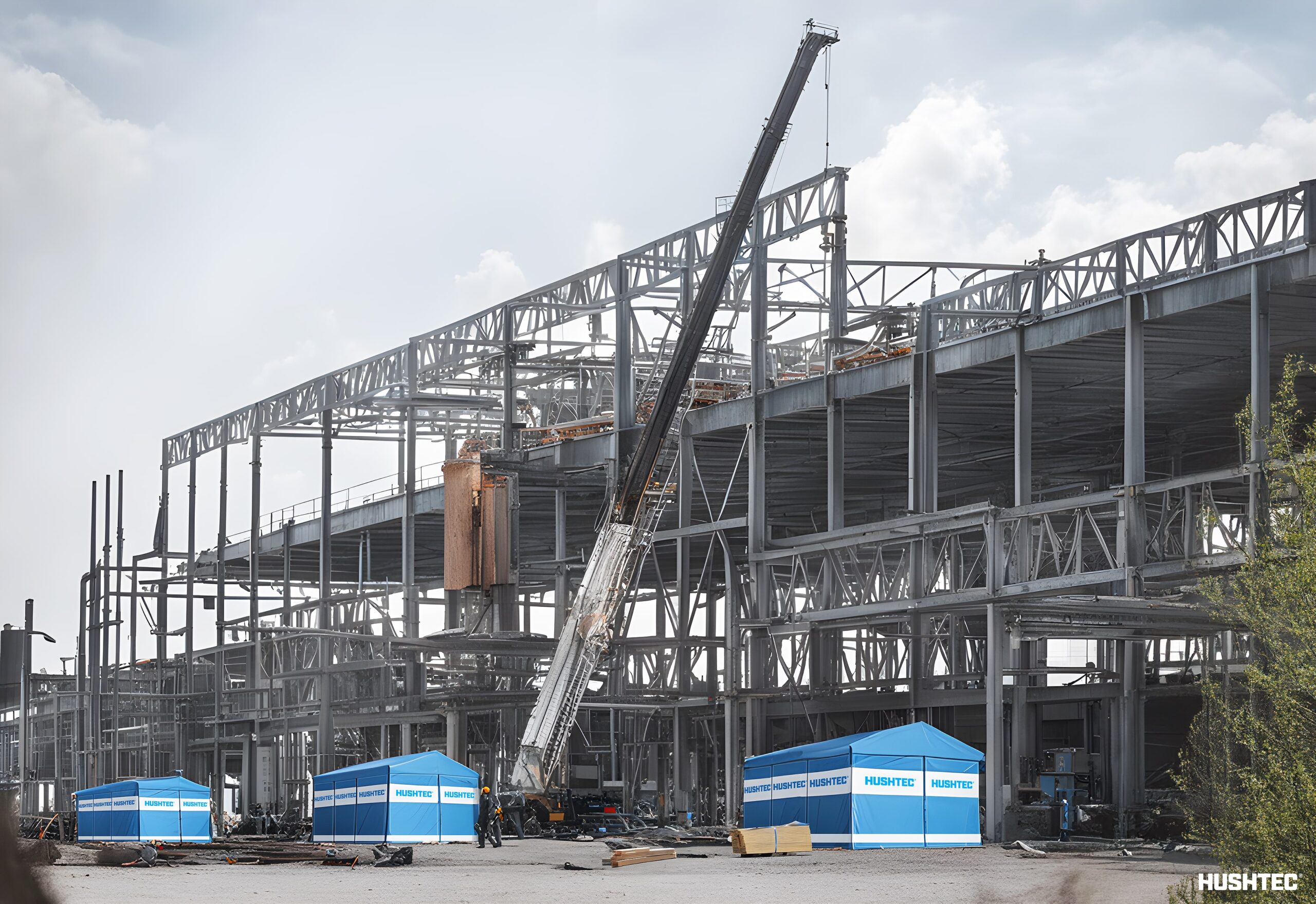

To address noise from stationary equipment, Hushtec deployed Acoustic Tents to cover cranes and other heavy machinery.
- Customization: The tents featured flexible access points for operators and equipment, ensuring normal operation while containing noise.
- Noise Reduction: Multi-layered acoustic panels effectively absorbed mechanical noise and reduced sound reflections.
- Results: Acoustic Tents achieved a reduction of up to 25 dB(A) for crane and heavy machinery operations.
4. Pile Driving Shrouds

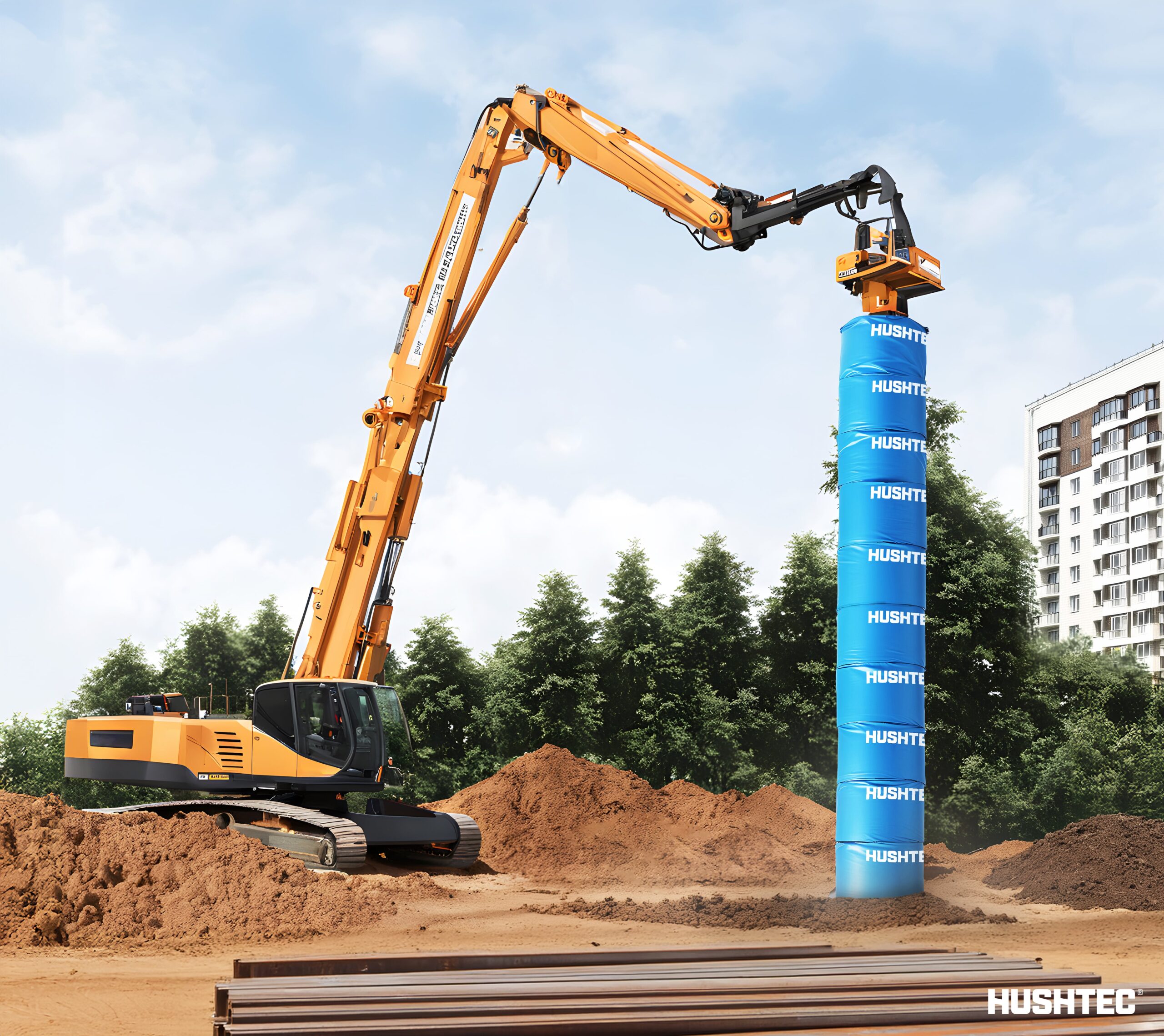

For the intense noise generated by pile driving, Hushtec utilized specialized Pile Driving Shrouds.
- Customization: Shrouds were designed to fit the specific pile driving equipment used on site.
- Materials: Constructed with durable, sound-absorbing materials capable of withstanding intense vibrations and impacts.
- Results: Noise emissions from pile driving were reduced by 20–30 dB(A), allowing for extended work hours without violating noise regulations.
5. Heavy Machinery Shrouds

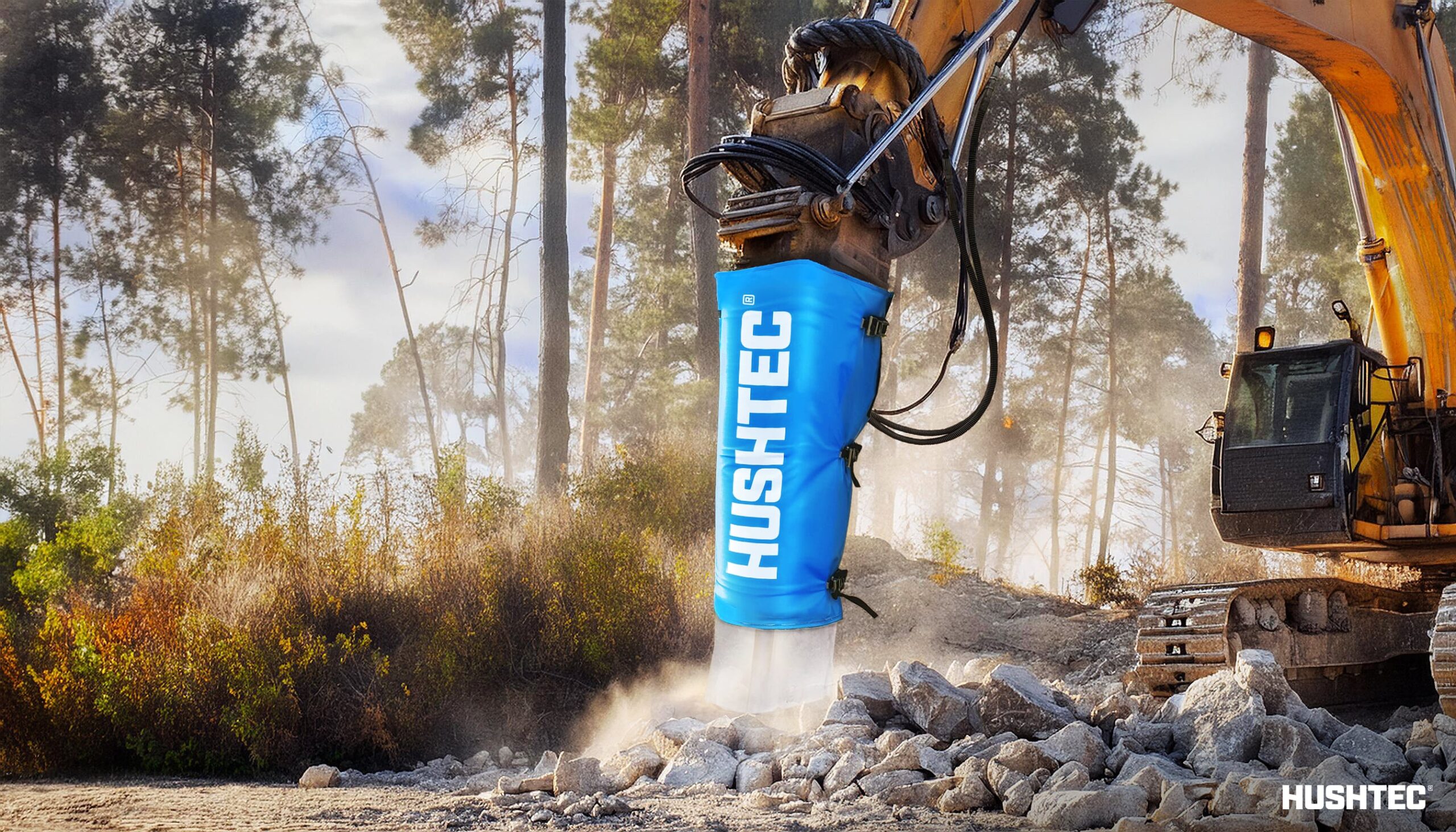

To further reduce noise from mobile equipment, Hushtec designed and installed Heavy Machinery Shrouds or Rock Breaker Shrouds.
- Customization: Each shroud was tailored to specific machinery models, ensuring full operational capacity while controlling noise at the source.
- Ease of Use: Lightweight materials allowed for easy removal and reinstallation for equipment maintenance.
- Results: Noise from heavy equipment operation was reduced by up to 20 dB(A), maintaining acceptable noise limits throughout the day.
Outcomes
The implementation of Hushtec’s comprehensive noise control solutions, led by the EchoShield Temporary Noise Walls, resulted in significant success:
- Effective Noise Reduction: Overall noise levels were reduced by 25–35 dB(A) across the site, minimizing disruption to nearby businesses, schools, and residential areas.
- Regulatory Compliance: The project maintained full compliance with local noise regulations, avoiding fines and project delays.
- Improved Community Relations: Fewer noise-related complaints led to better relationships with local residents and businesses.
- Worker Health and Safety: Reduced noise levels improved safety conditions and lowered the risk of hearing damage for construction workers.
- Adaptability: The modular nature of the EchoShield system and other solutions allowed for easy adaptation to different construction phases.
Conclusion
Hushtec’s EchoShield Temporary Noise Walls, combined with their suite of noise control solutions, proved highly effective in managing the challenges faced by this large-scale urban construction project. The comprehensive approach, featuring a mix of temporary walls, barriers, tents, and shrouds, allowed the construction firm to mitigate noise pollution, comply with regulations, and protect both workers and the surrounding community. This case study demonstrates the critical importance of implementing tailored, flexible noise management strategies in complex construction environments, where effective noise control is essential for operational efficiency, regulatory compliance, and maintaining positive community relations.
